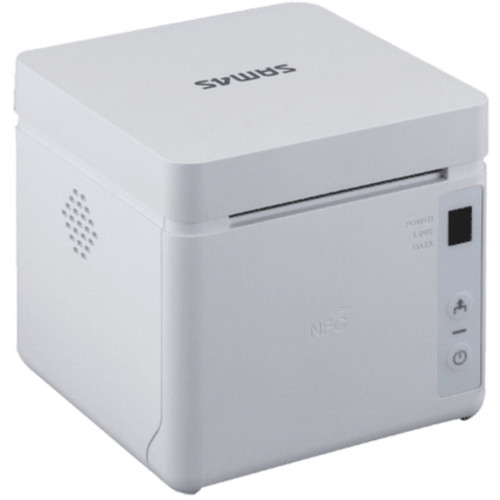

- The smallest receipt printer in the world
- 180dpi or 203dpi (special order) available
- Fast speed printing up to 250mm/sec
- Flexible Design: Front & Top Feeding (Waterproof)
- in Front feeding position, loading is also from the front
- Available in Black or White (Special Order)
- Flexible Composition
- Setting : LED notification, NFC function
- Installation : Wall type, Under shelf type (optional Bracket available)
- Various Interface models:
- USB+Serial, USB+Serial+Ethernet, USB+Bluetooth+Ethernet, USB+Wi-Fi+Ethernet
- JAM Free
- Printing Method: Line thermal printing
- Printing Width: 80mm Paper 72mm, 58mm Paper 54mm
- Dot Pitch: GCUBE102: 203 dpi, GCUBE100: 180 dpi (Special Order)
- Printing Speed (Max.): Max 250 mm/sec on 80 mm Mono Paper, Max 150 mm/sec on 58 mm Mono Paper, Max 100 mm/sec on Two Colour Paper
- Number of Columns: On 80mm paper, Font A : 48 (Gcube-102), 42 (Gcube-100), Font B : 64 (Gcube-102), 56 (Gcube-100)
- Character Size: Font A:42/21, Font B:56/28
- Character Table/Code Pages: N/A
- Bar-code Type: UPC-A, UPC-E, EAN8, EAN13, Code 39, Code 93, Code 128, ITF, CODABAR, PDF417, QR Code
- Line Spacing: N/A
- Paper feed method: Friction
- Paper Type: Thermal Paper Roll
- Paper Width: 80+0/-1 mm, 58 mm+0/-1
- Paper Roll Diameter: Max 83.0mm
- Paper Thickness: 0.06 - 0.08mm
- Paper Supply Method: Easy Paper Loading either from top or front, Drop in and Print
- Auto Cutter: Guillotine Type
- Indicators/Controls: Power light, LED for operation codes, Feed Button, on/off Switch
- Emulation: ESC/POS, Star
- Print Buffer: 64KB
- NV Memory: 8Mbyte Data Memory
- Sensors: Paper end Sensor, Printer Cover open Sensor
- Drawer Port: 1 port (opens 2 drawers, special cable is needed to open 2 drawers)
- External Device Port: N/A
- Interfaces: USB, RS232 & Ethernet, USB, RS232 & Parallel (Special Order), USB, Ethernet & Wifi, USB, Ethernet & Bluetooth
- Driver available: Windows driver, OPOS, JPOS (Linux & Mac), Cups driver (Linux & Mac)
- Software Utilities: Utility Program
- Power Supply: External AC Adapter Rated input: AC 90 to 264 V, 50/60 Hz, Rated output: DC24 V, 2.5 A
- Power Consumption
- External Dimensions (WxDxH): 123w 123d 123h mm
- Weight: 0.75 Kg
- Operating Environment: 5-45C, 10-90% RH
- Storage Environment: -10-50C, 10-90% RH
- Reliability: Mechanism: 70Mil Lines, Thermal Print head: 150Km, Auto Cutter: 1.5 Mil cuts
- EMC/Safety Standards: FCC class A, CE marking, TUV/GS, CE, CB, cTUVus
